In today's global packaging industry, PET bottles have become one of the most widely used containers for beverages, food products, pharmaceuticals, and personal care items. Behind every PET bottle lies a critical intermediate product known as the PET preform. Although it appears small and simple, the PET preform determines the final bottle's strength, clarity, weight distribution, and performance in real-world applications.
The production of PET bottles is not possible without precision engineering equipment-especially PET preform molds. These molds are the foundation of injection molding systems that convert raw PET resin into highly accurate preforms, which are later stretched and blown into bottles. Understanding PET preform molds is essential for manufacturers, engineers, and global buyers who want stable production quality and cost efficiency.
This article explains the PET preform production process, the importance of mold design, and how modern mold technology supports high-efficiency bottle manufacturing.
What is a PET Preform?

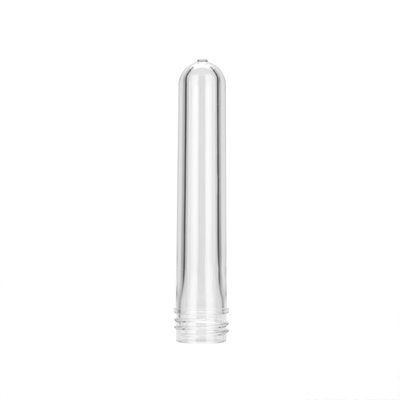

A PET preform is a small, test-tube-shaped plastic component made from Polyethylene Terephthalate (PET) resin. It serves as the intermediate stage between raw plastic material and the final bottle. In injection molding, the PET resin is melted and injected into a preform mold, forming a thick tube with a fully shaped neck and threaded closure section.
According to industry manufacturing principles, the neck area of the preform is fully formed during injection, while the body section remains thick and solid for later stretching. This ensures compatibility with caps and closures and guarantees structural consistency during blow molding.
The final bottle shape is not created at this stage. Instead, the preform acts as a "semi-finished product" that will later be expanded using heat and air pressure.
PET Preform Manufacturing Process
The production of PET preforms is based on high-precision injection molding technology. The process is widely used due to its efficiency, repeatability, and ability to produce large quantities with consistent quality.
Raw Material Drying
PET resin is highly sensitive to moisture. Before processing, it must be fully dried to prevent defects such as haze, brittleness, or reduced mechanical strength. Industrial systems typically use dehumidifying dryers to maintain stable material conditions.
Injection Molding Process
The dried PET resin is melted at high temperatures (typically 260–280°C) and injected into a PET preform mold under high pressure. The mold cavity defines the final shape of the preform, while a hot runner system ensures uniform material distribution across all cavities.

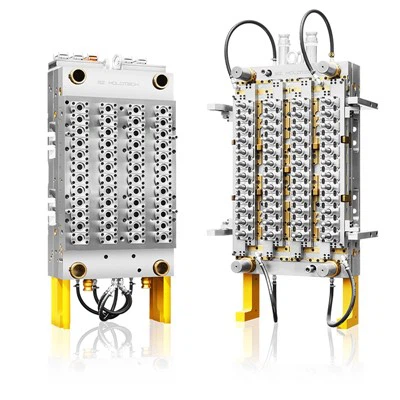

Modern production lines often use multi-cavity molds (48, 72, 96, or even 144 cavities), enabling large-scale output with extremely consistent dimensions.
Cooling and Solidification
Cooling is a critical stage in preform molding. The mold is equipped with temperature control channels to ensure uniform cooling. If cooling is uneven, defects such as crystallization, shrinkage, or internal stress may occur. Proper thermal management ensures high transparency and mechanical strength.
Ejection and Inspection
Once cooled, the preforms are automatically ejected and inspected for defects such as weight variation, surface contamination, or dimensional inconsistency.
PET Preform to Bottle: Stretch Blow Molding Process
After production, PET preforms are converted into bottles using Stretch Blow Molding (SBM). This process includes:
Reheating the preform to a controlled temperature
Stretching it longitudinally using a stretch rod
Blowing high-pressure air into a bottle mold
Rapid cooling to fix the final shape
This method produces lightweight, transparent, and durable bottles suitable for beverages, cosmetics, and pharmaceuticals. The efficiency of this process is one of the main reasons PET packaging dominates global markets.
What is a PET Preform Mold?
A PET preform mold is a precision-engineered tool used in injection molding machines to produce PET preforms. It consists of multiple cavities, hot runner systems, cooling channels, and ejection mechanisms.
The mold design directly determines:
Preform weight consistency
Wall thickness distribution
Neck accuracy and thread precision
Cycle time efficiency
Final bottle quality
In modern manufacturing, mold precision is a key factor affecting production stability. Poor mold design can lead to defects such as uneven walls, stress marks, or incomplete filling, while high-quality molds ensure long service life and stable output.
Advanced PET preform molds are designed for millions of injection cycles, making them essential assets in high-volume production environments.
Importance of High-Quality PET Preform Molds
In industrial production, mold quality is often more important than machine selection. A well-designed mold ensures:
Stable production cycles
Reduced material waste
High transparency of PET products
Better energy efficiency
Longer machine lifespan
Additionally, optimized cooling systems inside molds significantly reduce cycle time, increasing overall production efficiency and lowering manufacturing costs.
SZ-MOLDTECH (Jiaxing) Co., Ltd. – Recommended Mold Manufacturer for Global Buyers
For international buyers looking for reliable PET preform mold solutions, SZ-MOLDTECH (Jiaxing) Co., Ltd. is a professional manufacturer specializing in high-precision mold engineering for PET packaging systems.
The company focuses on designing and producing PET preform molds that support high-cavity production systems, helping manufacturers achieve efficient large-scale bottle production. With advanced machining capabilities and strict quality control processes, SZ-MOLDTECH ensures stable mold performance, long service life, and consistent preform accuracy.
Their engineering team emphasizes customized solutions based on customer requirements, including preform weight optimization, cavity layout design, and cooling system efficiency. These factors are critical for industries such as bottled water, carbonated drinks, edible oil, and personal care packaging.
For overseas procurement teams, SZ-MOLDTECH provides not only mold products but also complete technical support for injection molding optimization. This makes the company a strong partner for enterprises seeking to improve production efficiency while maintaining stable product quality in competitive global markets.
Applications of PET Preform Molds
PET preform molds are widely used in:
Bottled water production
Carbonated soft drink packaging
Juice and beverage containers
Edible oil bottles
Pharmaceutical packaging
Cosmetic and personal care bottles
With increasing demand for lightweight and recyclable packaging, the importance of high-efficiency mold systems continues to grow.
Conclusion
PET preform molds play a central role in modern bottle manufacturing. From raw PET resin to final bottle formation, every stage depends on precision engineering and stable mold performance. As global demand for PET packaging continues to grow, manufacturers must invest in high-quality mold systems to ensure production efficiency and product consistency.
Companies like SZ-MOLDTECH (Jiaxing) Co., Ltd. provide advanced PET preform mold solutions that support large-scale, high-precision manufacturing, making them valuable partners for international buyers seeking reliable and long-term production capabilities.
